DS46 S.BK .A1 HUC(48,6203)

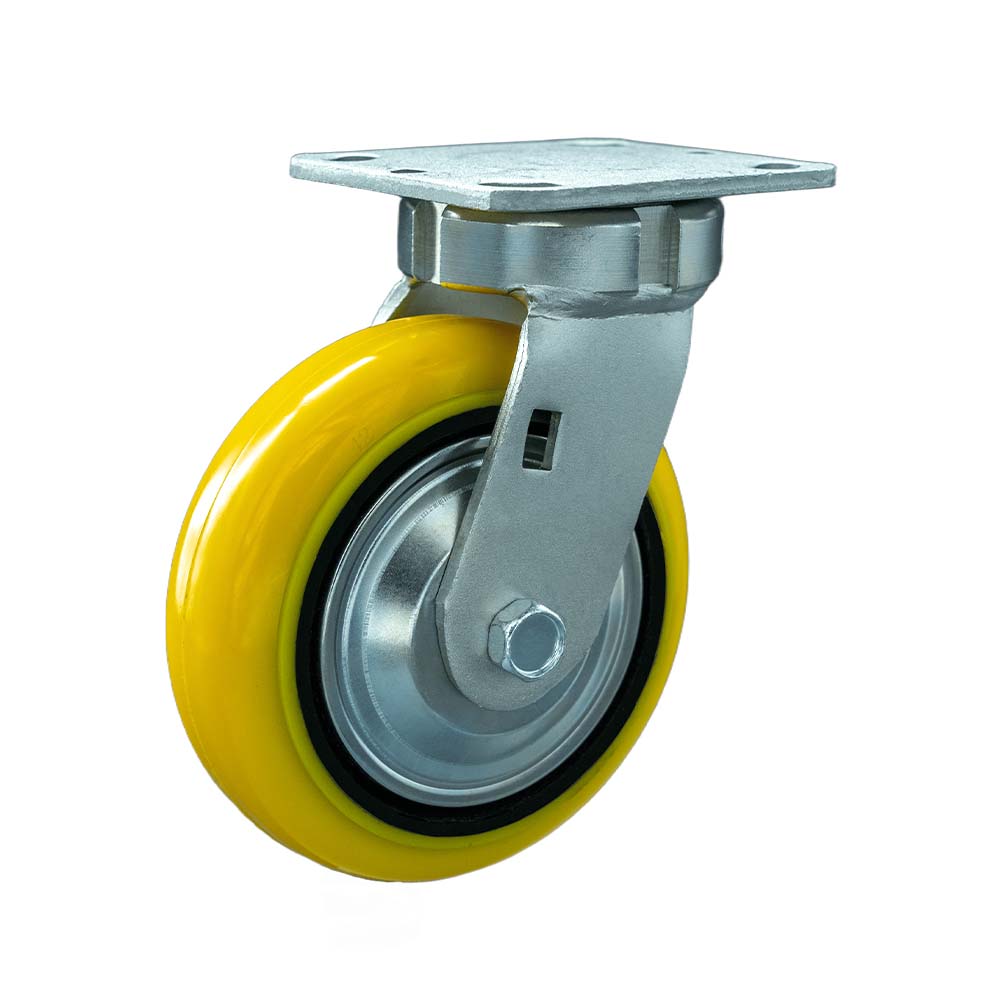

Heavy Duty Iron Core Heavy Polyurethane Tread Swivel Brake Caster(DS-46 Series)
KEY FEATURES


Wheel Tread:

  • Made of Heavy-duty Polyurethane (HPU)

  • Material has a hardness of 95-98 Shore A

  • Offering Quiet operation, excellent wear resistance, and high material stability

  • Recommended operating temperature: ≤ 80 °C



Wheel Core:

  • Constructed from Impact-resistant cast iron

  • Integrated with precision ball bearings for smooth and quiet rolling performance



 Bracket:

  • Manufactured using heavy duty press-formed steel and welded with galvanized finish for corrosion resistance

  • Features a double-row ball raceway for enhanced swivel action

  • Provides smooth rotation without jamming, ensuring reliable maneuverability

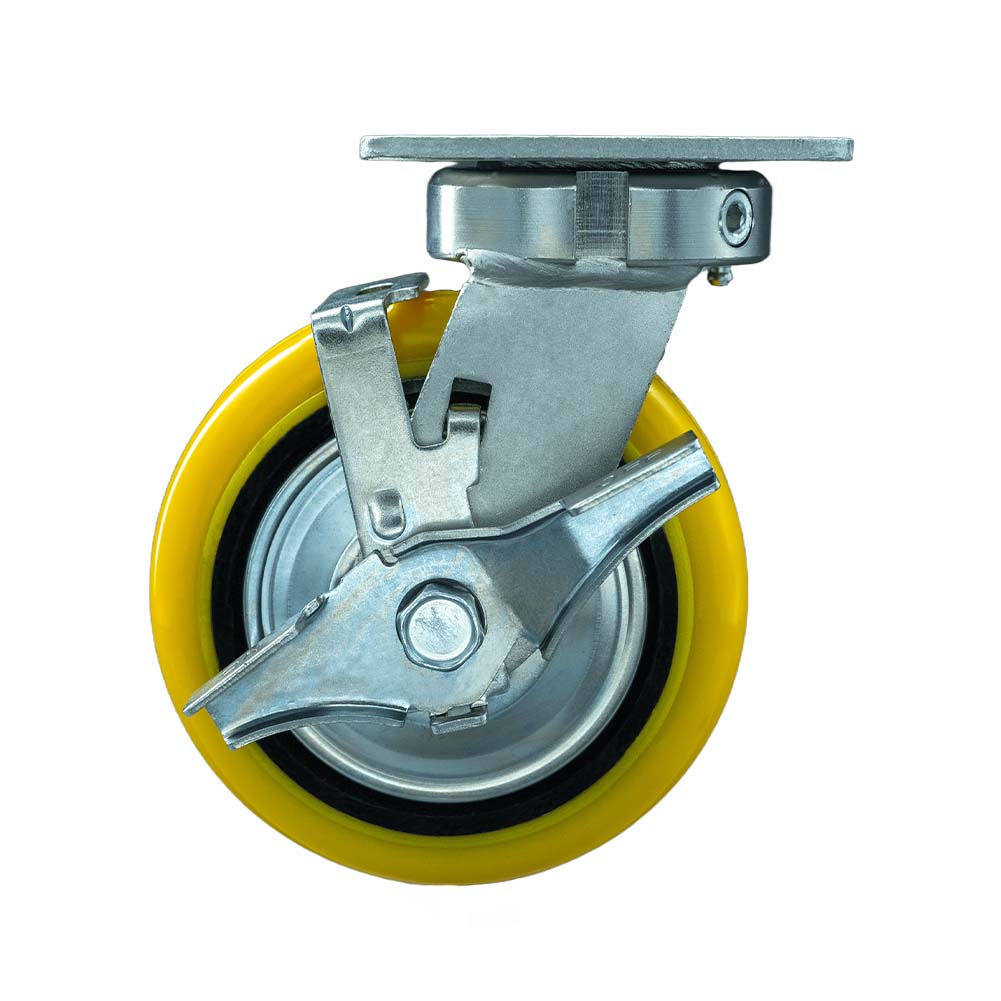

Brake Type
  • Side Brake

    Side Brake

SPECIFICATIONS

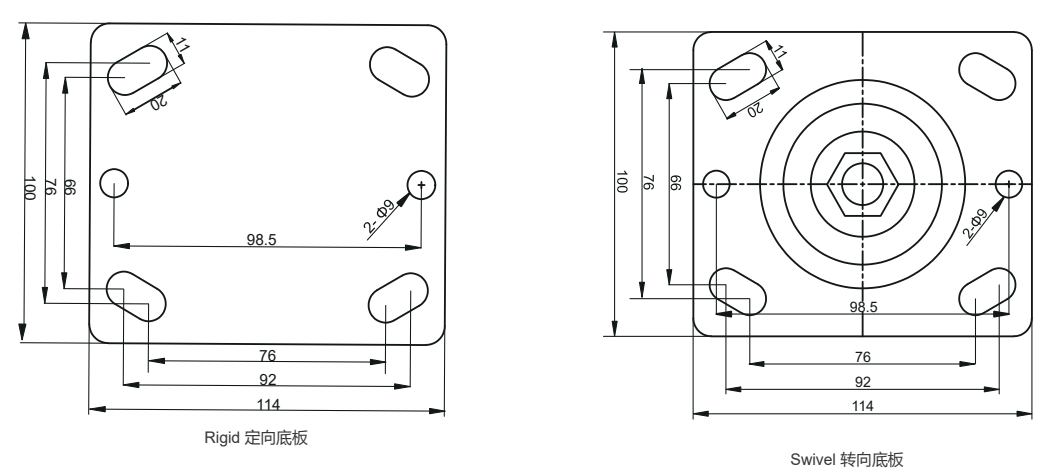

MOUNTING PLATE
